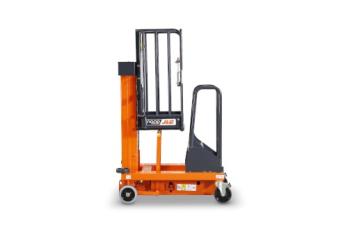

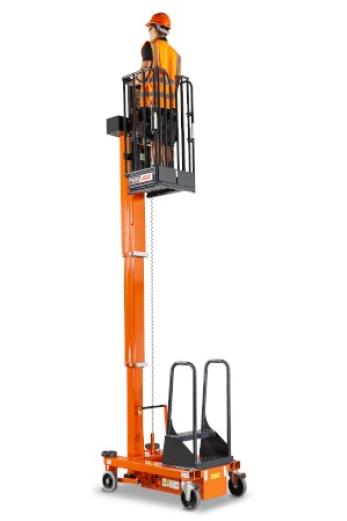

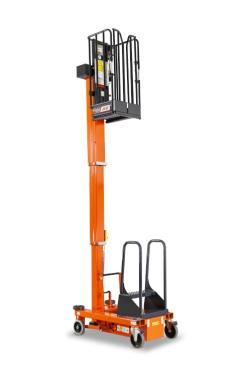

Nano 30 CS
The Nano 30CS is a compact and efficient low-level access solution, purpose-built for working in confined spaces where traditional access equipment can’t reach. With a maximum working height of 4.95 m and a small 0.55 m x 0.55 m platform, it provides safe and reliable access in tight areas without compromising on performance.
Designed for simplicity and durability, the Nano 30CS features easy entry access steps, push-button controls, and a minimal footprint of just 1.20 m x 0.76 m, making it ideal for passing through standard single doorways. Its Auto-Lok heavy-duty wheels ensure stability during elevation, while the robust steel construction with dual mast and ultra-glide technology guarantees long-term reliability.
The Nano 30CS is designed to meet stringent industry standards. Equipped with a robust, non-slip platform and self-locking front wheels, it provides a secure and stable working environment. Operators can focus on their tasks with confidence.
Perfect for indoor use, this machine offers a 200 kg platform capacity, integrated safety features such as emergency lowering from ground level, and practical options like tool trays and tethering solutions to maximize productivity.

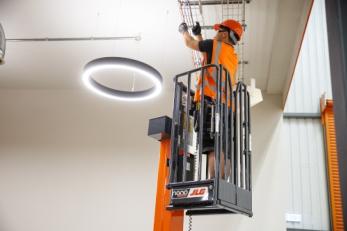

The Nano 30CS is the go-to solution for maintenance, inspection, and installation tasks where space is limited but safety and efficiency are essential.
Delivery: Please contact us for delivery timescales
-
Safe access up to 4.95 m working height
-
Compact design for confined or narrow access areas
-
Lightweight and manoeuvrable at just 333 kg
-
Simple, push-button operation for ease of use
-
Designed with safety in mind – including load-holding hydraulics, acoustic signals, and anti-climb basket
Performance
Maximum platform height 2.95 m
Closed platform height 0.83 m
Working outreach 0.65 m
Platform dimensions L x W 0.55 m x 0.55 m
Working foot print 1.20 m x 0.76 m
Safe working load – platform 200 kg (1 person + tools)
Safe working load – standard tray 20 kg
Maximum manual force 200 N
Maximum gradient for operation 0,5°
Maximum wind force 0 m/s (lndoors Use Only)
Maximum weight, including payload 533 kg
Maximum castor point load 182 kg (1.78 kN)
Maximum Wheel force 182 kg (1.78 kN)
Sound Pressure Level Less than 76 dBA
Vibration Level Less than 0.5 m/s²
Closed dimensions
Length 1.20 m
Width 0.76 m
Height 1.94 m
Weight 333 kg
Battery charger specification
Input Voltage 90-265V AC
Frequency 50-60 Hz
Output 12V DC, 6A
