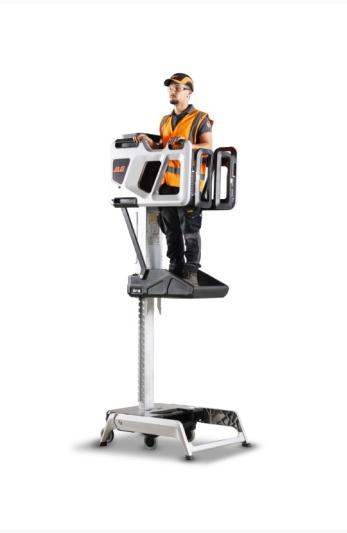

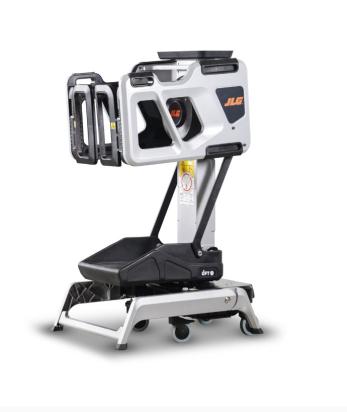

LiftPod 1.2
LiftPod is not just about reaching heights. In a world that's increasingly focused on employee health, safety and well-being, it has raised the standard forever!
This next generation platform changes the landscape for workers at height by offering more comfortable elevation with lower physical impact and risk of injury from falling.

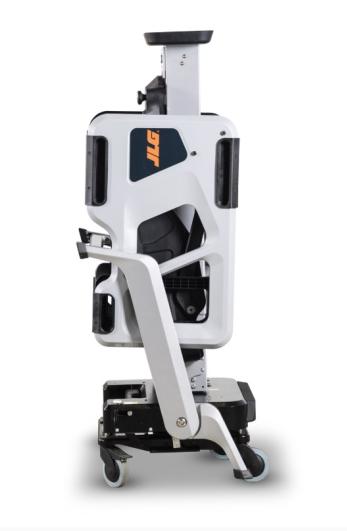

It is also the world's first Quick Fold Lift, the first in a new category of Low Level Access equipment. Thanks to its foldable configuration, it is easy to manoeuver and move between tasks.
- Intuitive and user-friendly
- Designed with operator well-being in mind
- Easy to manoeuver and compact for storage
- Increased efficiency and productivity
- Designed for indoor public spaces
Performance
Max working height 3.2 m
Max platform height 1.2 m
Closed platform height 0.39 m (on castors) 0.36 m (on legs)
Platform dimensions L x W 0.58 m x 0.4 m
Working footprint 0.99 m x 0.77 m (unfolded)
Safe working load 150 kg (1 person + tools)
Maximum manual force 200 N
Maximum gradient for operation 0.5°
Maximum wind force Internal use only 0 m/s
Closed dimensions
Length 0.6 m
Width 0.77 m
Height 1.6 m (on castors)
Weight 180 kg
Made for Soft Facilities Maintenance
- Intuitive and easy to operate
- Foldable for compact storage
- Stylish design
- Public space friendly
- Smooth touch points
- One person operation
- Inclusive for all types of operators
- 24/7 availability – manually operated,no charging required
- Designed to help reduce biomechanical risk factors for lumbar disc strain by allowing upright, adjustable, ergonomic working conditions
Characteristics
- Sustainable – patented non-powered lift
- Designed with no scheduled maintenance
- Lightweight, easy to manoeuvre when folded or unfolded
- Low centre of gravity for solid vertical work
- Sturdy ground contact during operation
- Spirit level on base
- 360-degree hands free operation
